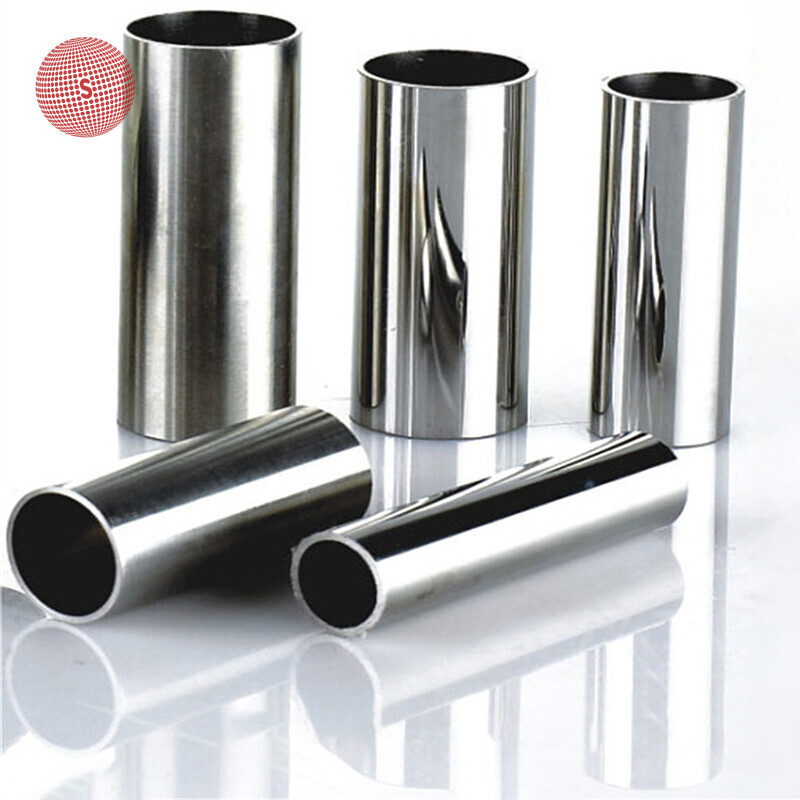

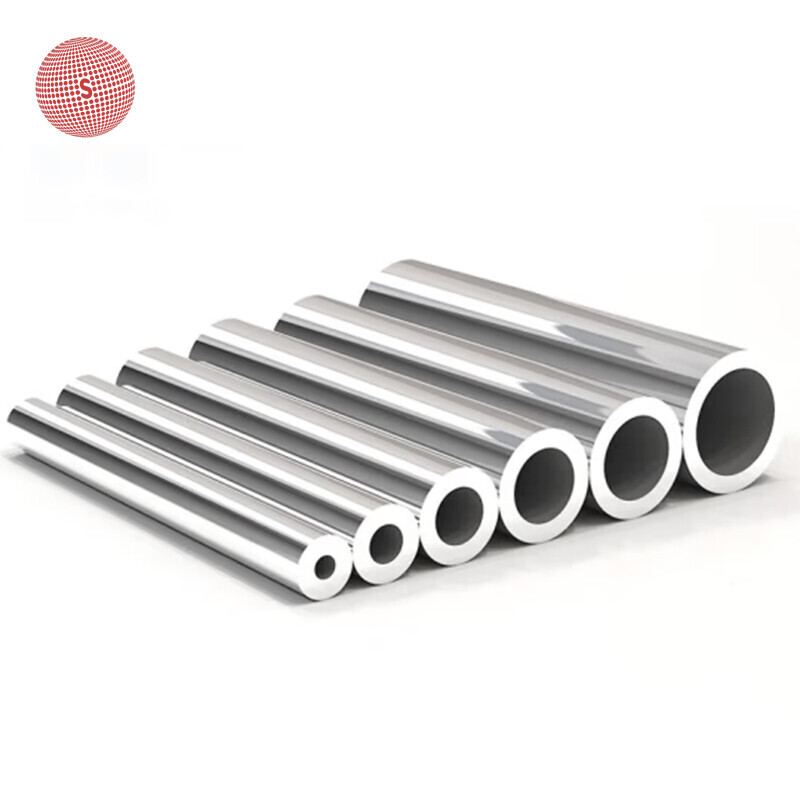

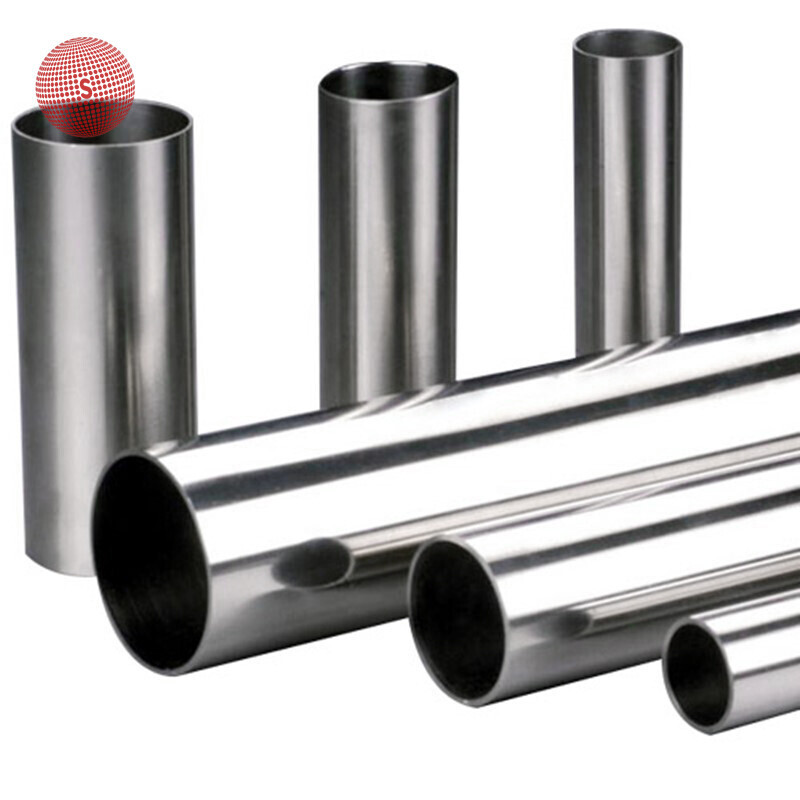

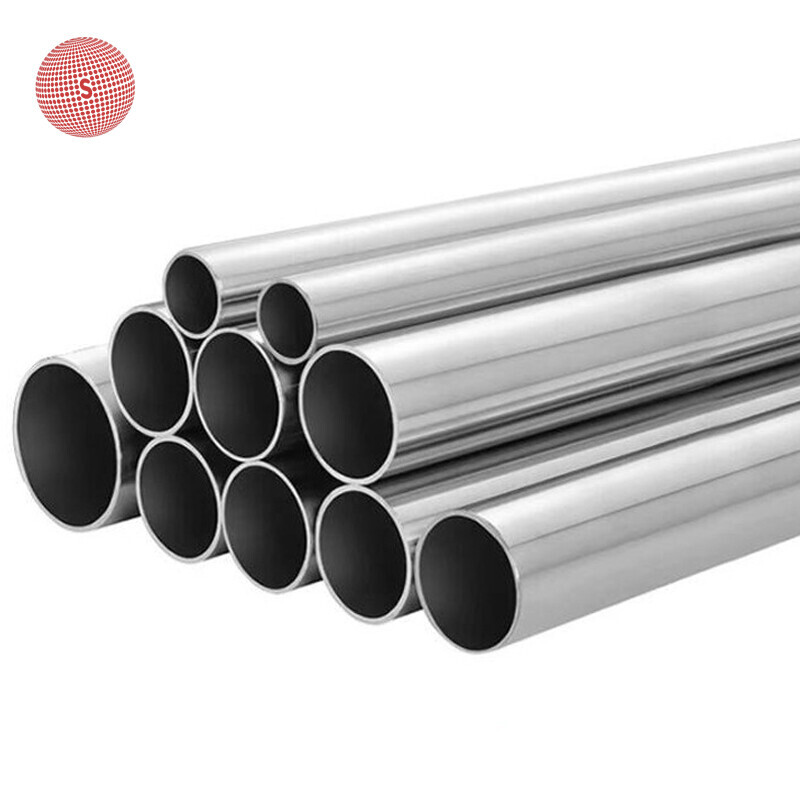

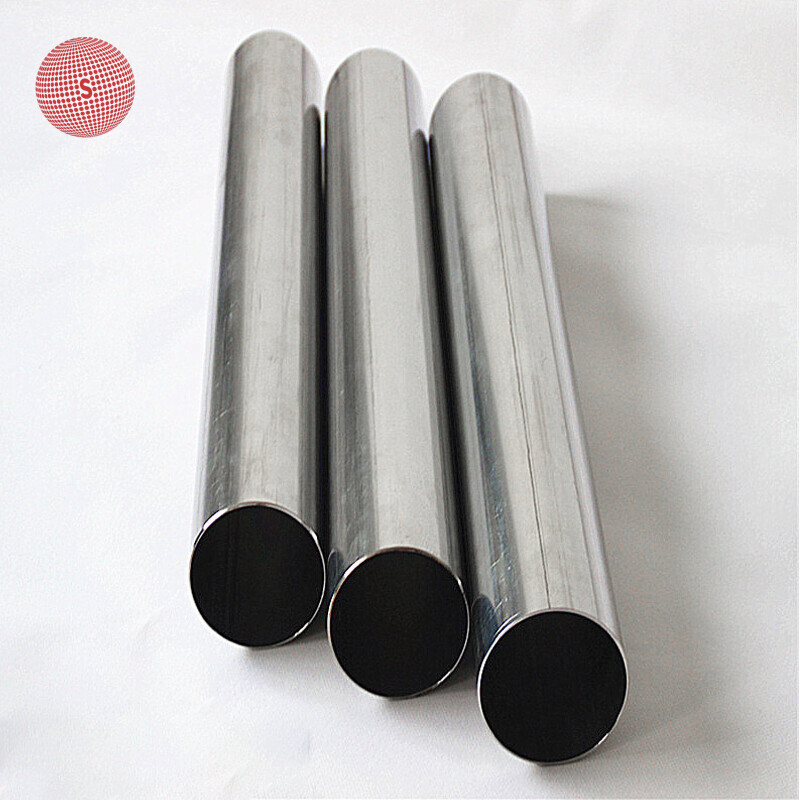

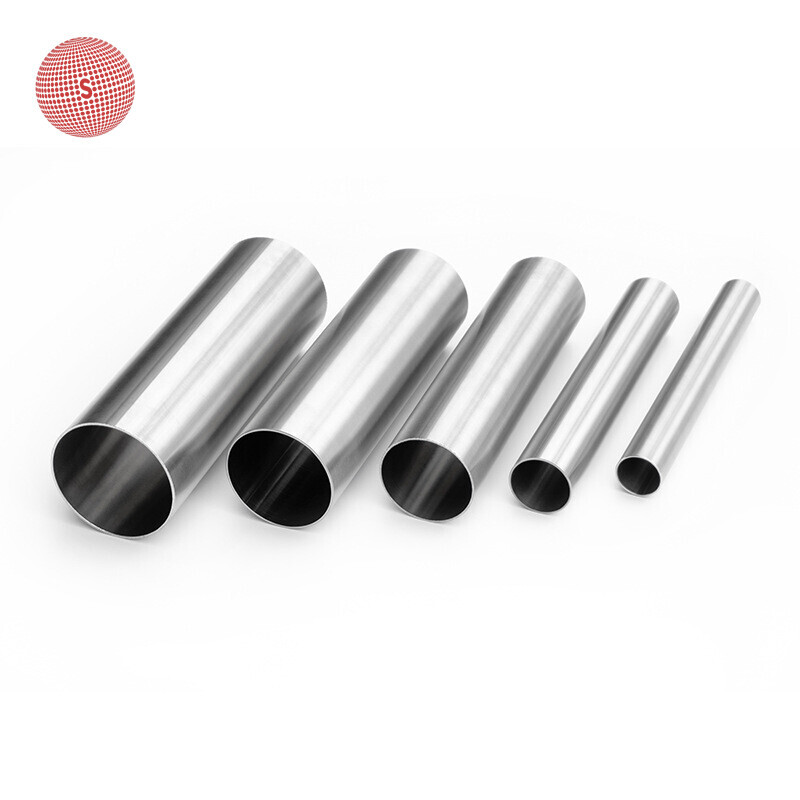

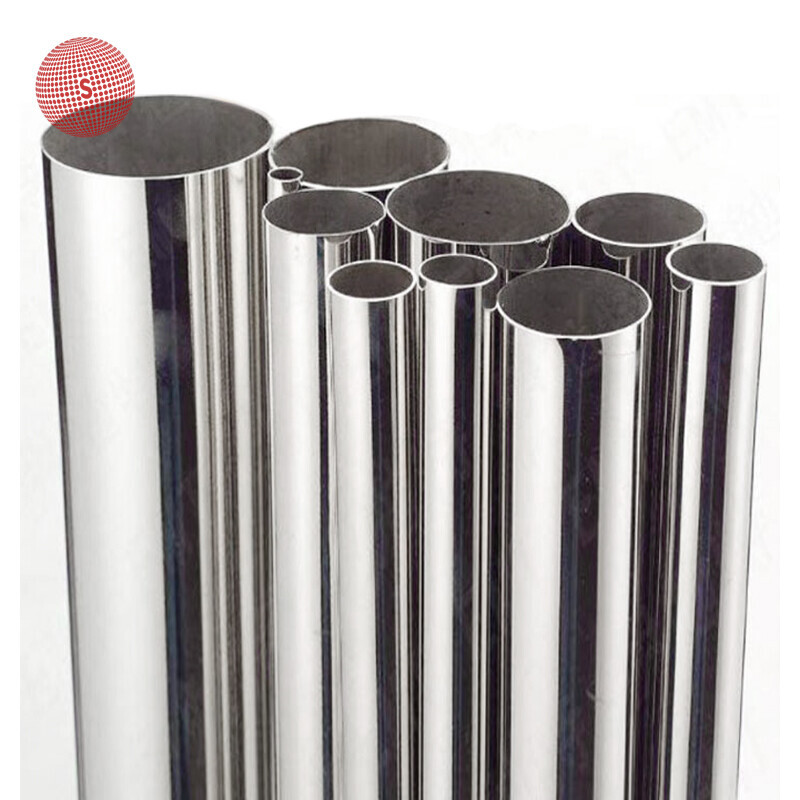

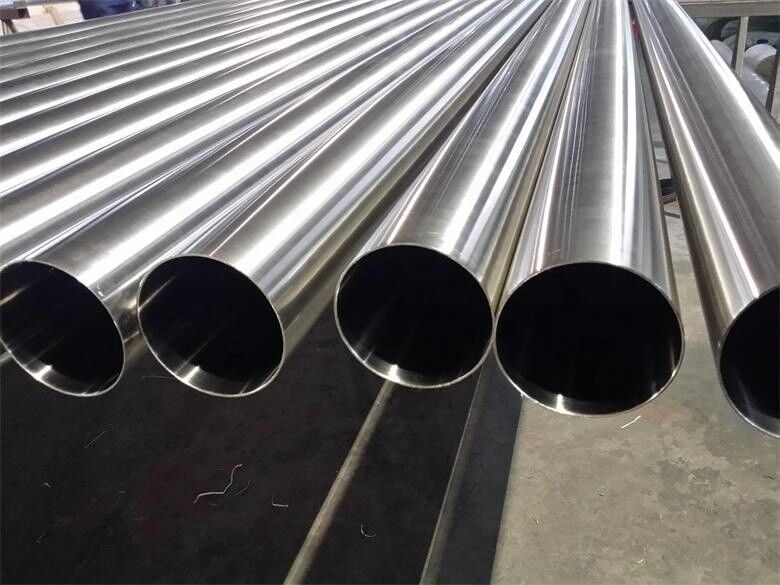

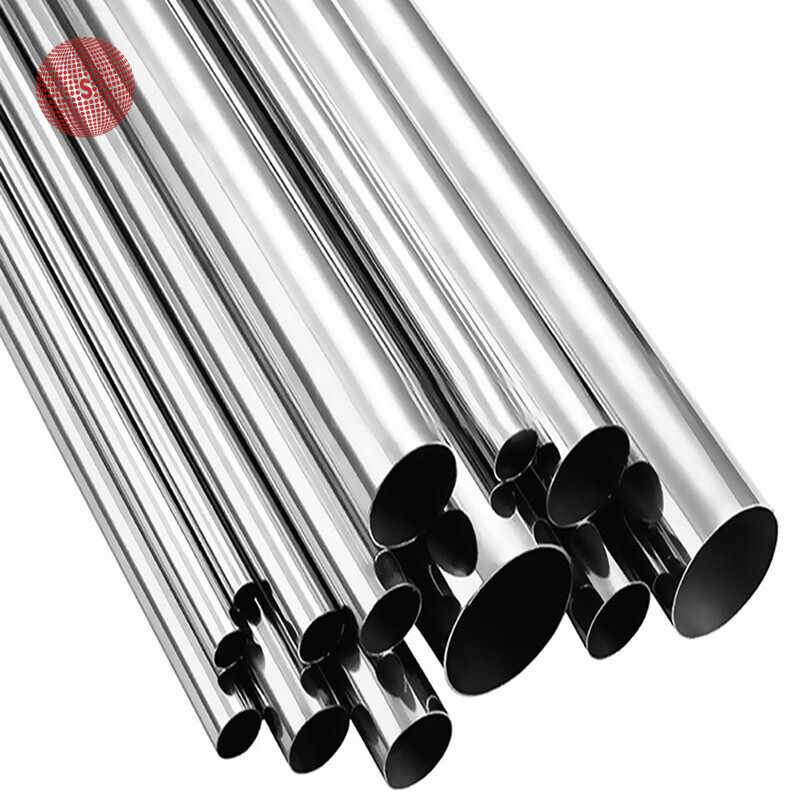

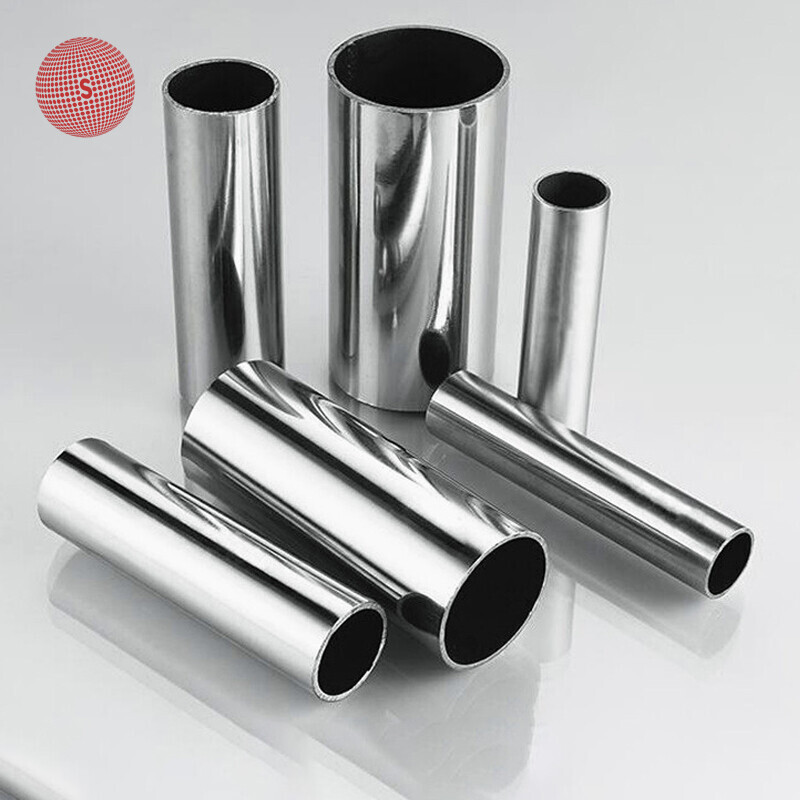

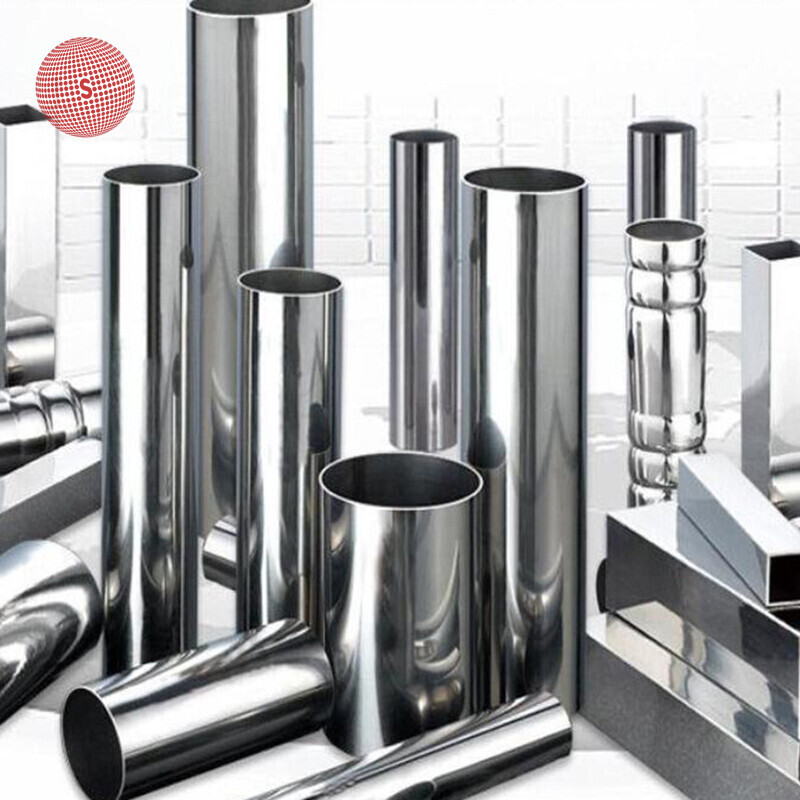

304L Stainless Steel Pipe

Shagang Steel overall technology and equipment have reached the international advanced level. Equipped with modern process equipment covering the entire process from coking, sintering, smelting to steel rolling.

+86 18354173223

sales04@jnsgsteel.cn

◉ Product Details

Product name:stainless steel pipe

Grade: stainless steel

Standard: GB/T4237-2009 10cr17

Technology: Hot Rolled, Cold Rolled

Processing methods: bending, welding annealing, uncoiling, cutting, punching, polishing, quenching and tempering rolling or as per customer requirements

Usage: Because stainless steel welded pipes are thin and have good surface treatment effects, they are mostly used in architectural decoration products, civil decorative art stainless steel products, etc. Stainless steel industrial pipes have thick walls and uneven surfaces, and have strong bearing capacity. They are mostly used to make large-size, high-strength, high-toughness, mechanical systems and other products.

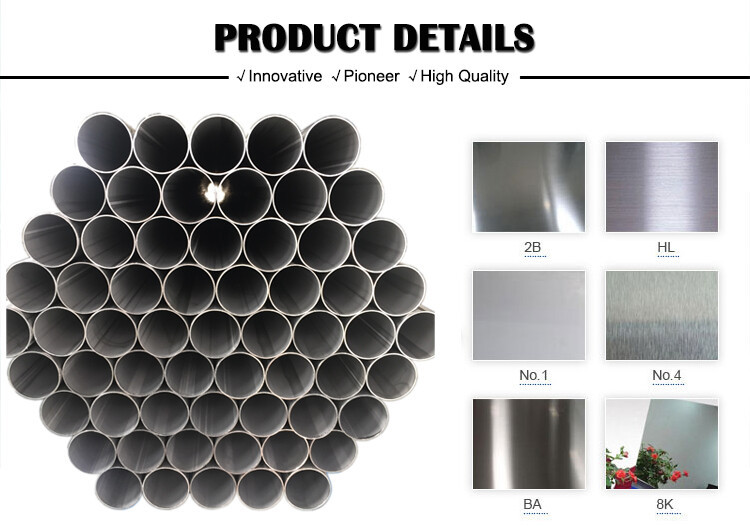

Value-added technology: mirror, brushing, ink, color plating, embossing, titanium plating, etc.

Regular order: 25 tons or one container, you can also contact us for small quantities

Packaging: Standard seaworthy export packaging: waterproof paper + steel triple packaging + wooden box

Construction period; 7-15 days

chemical composition：

美国 ASTM	中国 GB	化学成分 %
美国 ASTM	中国 GB	C	Cr	Ni	Mn	P	S	Mo	Si	Cu	N	其它
201	1Cr17Mn6Ni5N	≤0.15	16.00-18.00	3.50-5.50	5.50－7.50	≤0.060	≤0.030	-	≤1.00	-	≤0.25	-
201L	03Cr17Mn6Ni5N	≤0.030	16.00-18.00	3.50-5.50	5.50－7.50	≤0.060	≤0.030		≤1.00		≤0.25
202	1Cr18Mn8Ni5N	≤0.15	17.00-19.00	4.00-6.00	7.50-10.00	≤0.060	≤0.030		≤1.00	-	≤0.25	－
204	03Cr16Mn8Ni2N	≤0.030	15.00-17.00	1.50-3.50	7.00-9.00						0.15-0.30
301	1Cr17Ni7	≤0.15	16.00-18.00	6.00-8.00	≤2.00	≤0.065	≤0.030	-	≤1.00	-	-	-
302	1Cr18Ni9	≤0.15	17.00-19.00	8.00-10.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
303	Y1Cr18Ni9	≤0.15	17.00-19.00	8.00-10.00	≤2.00	≤0.20	≤0.030	1)	≤1.00	-	-	-
304	0Cr18Ni9	≤0.07	17.00-19.00	8.00-10.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
304L	00Cr19Ni10	≤0.030	18.00-20.00	8.00-10.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
304N1	0Cr19Ni9N	≤0.08	18.00-20.00	7.00-10.50	≤2.00	≤0.035	≤0.030	-	≤1.00	-	0.10-0.25	-
304N2	0Cr18Ni10NbN	≤0.08	18.00-20.00	7.50-10.50	≤2.00	≤0.035	≤0.030	-	≤1.00	-	0.15-0.30	Nb≤0.15
304LN	00Cr18Ni10N	≤0.030	17.00-19.00	8.50-11.50	≤2.00	≤0.035	≤0.030	-	≤1.00	-	0.12-0.22	-
305	1Cr18Ni12	≤0.12	17.00-19.00	10.50-13.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
309S	0Cr23Ni13	≤0.08	22.00-24.00	12.00-15.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
310S	0Cr25Ni20	≤0.08	24.00-26.00	19.00-22.00	≤2.00	≤0.035	≤0.030	-	≤1.00	-	-	-
316	0Cr17Ni12Mo2	≤0.08	16.00-18.50	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	-	-
316L	00Cr17Ni14Mo2	≤0.030	16.00-18.00	12.00-15.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	-	-
316N	0Cr17Ni12Mo2N	≤0.08	16.00-18.00	10.00-14.00	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	0.10-0.22	-
316N	00Cr17Ni13Mo2N	≤0.030	16.00-18.50	10.50-14.50	≤2.00	≤0.035	≤0.030	2.00-3.00	≤1.00	-	0.12-0.22	-
316J1	0Cr18Ni12Mo2Cu2	≤0.08	17.00-19.00	10.00-14.50	≤2.00	≤0.035	≤0.030	1.20-2.75	≤1.00	1.00-2.50	-	-
316J1L	00Cr18Ni14Mo2Cu2	≤0.030	17.00-19.00	12.00-16.00	≤2.00	≤0.035	≤0.030	1.20-2.75	≤1.00	1.00-2.50	-	-
317	0Cr19Ni13Mo3	≤0.12	18.00-20.00	11.00-15.00	≤2.00	≤0.035	≤0.030	3.00-4.00	≤1.00	-	-	-
317L	00Cr19Ni13Mo3	≤0.08	18.00-20.00	11.00-15.00	≤2.00	≤0.035	≤0.030	3.00-4.00	≤1.00	-	-	-
